Description
usage: For general use in dry locations, electrical equipment, distribution boards and switches, pipes buried under and over plaster, restrained by insulating fasteners, are used up to 750 V. Direct use of plaster is not allowed.

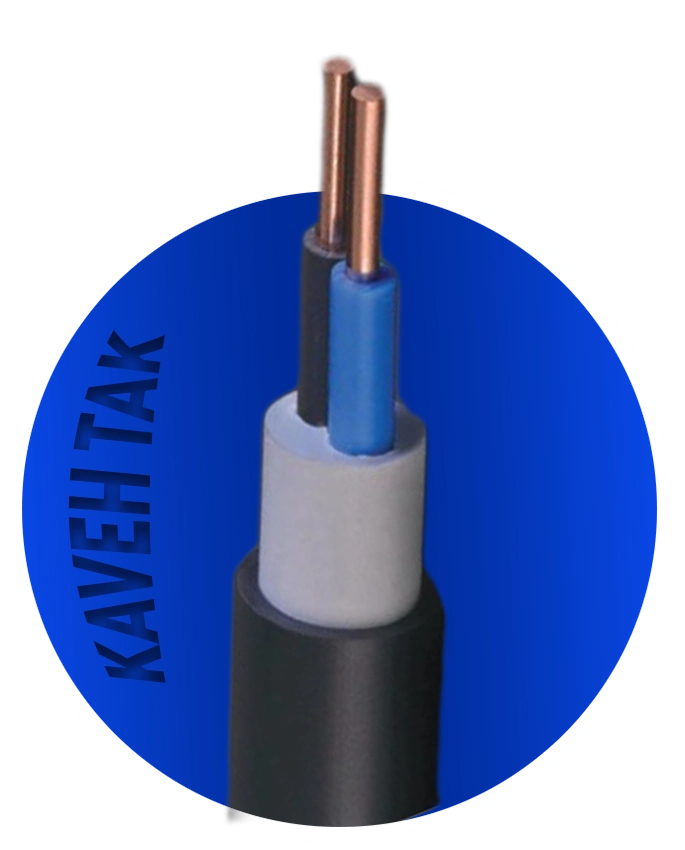

Wire and semi-dispersed wires with PVC insulation
NYA , HO7V-U , HO7V-R , HO5V-R , H05V-U
usage: For general use in dry locations, electrical equipment, distribution boards and switches, pipes buried under and over plaster, restrained by insulating fasteners, are used up to 750 V. Direct use of plaster is not allowed.
Product description
Specification table
Product description
Technical information
Standard sources
- ISIRI 607-3
- VDE-0250
- IEC 60227-3
Usage temperature
-
Maximum 70 degrees Celsius
Nominal voltage
- For a conductor with a cross section smaller than 1mm2 equal to 300/500 volts and for a conductor with a cross section greater than 1mm2 equal to 450/750 volts
Conductor class
- Class 1 and 2 according to ISIRI 3084 national standard
- For general use in dry locations, electrical equipment, distribution boards and switches, pipes buried under and over plaster, restrained by insulating clamps, are used up to 750 V.
- Direct use of plaster is not allowed.
Specification table
| Conductor Resistance at 20℃ Max. (Ω/km) | Weight Approx. (Kg/Km) | Maximum diameter (mm) | Minimum diameter (mm) | Insulation thickness (mm) | NO.of Wires x Diameter Nom. (No-mm) | Conductor Class | Cross Sectional-Area-Nom(mm2) |
|---|---|---|---|---|---|---|---|
| 36.00 | 9.000 | 2.3 | 1.9 | 0.6 | 0.8×1 | 1 | 0.5 |
| 24.50 | 11.000 | 2.5 | 2.1 | 0.6 | 0.96×1 | 1 | 0.75 |
| 18.10 | 13.500 | 2.7 | 2.2 | 0.6 | 1.12×1 | 1 | 1 |
| 12.10 | 19.700 | 3.2 | 2.6 | 0.7 | 1.37×1 | 1 | 1.5 |
| 12.10 | 22.000 | 3.3 | 2.7 | 0.7 | 0.53×7 | 2 | 1.5 |
| 7.41 | 30.670 | 3.9 | 3.2 | 0.8 | 1.75×1 | 1 | 2.5 |
| 7.41 | 33.570 | 4 | 3.3 | 0.8 | 0.67×7 | 2 | 2.5 |
| 4.61 | 45.070 | 4.4 | 3.6 | 0.8 | 2.21×1 | 1 | 4 |
| 4.61 | 48.310 | 4.6 | 3.8 | 0.8 | 0.84×7 | 2 | 4 |
| 3.08 | 64.070 | 5 | 4.1 | 0.8 | 2.71×1 | 1 | 6 |
| 3.08 | 68.220 | 5.2 | 4.3 | 0.8 | 7.03×7 | 2 | 6 |
| 1.83 | 106.560 | 6.4 | 5.3 | 1 | 3.51×1 | 1 | 10 |
| 1.83 | 112.750 | 6.7 | 5.6 | 1 | 1.33×7 | 2 | 10 |
| 1.15 | 170.280 | 7.6 | 6.4 | 1 | 1.68×7 | 2 | 16 |
| 0.7270 | 266.140 | 9.7 | 8.1 | 1.2 | 2.11×7 | 2 | 25 |
| 0.5240 | 359.740 | 10.9 | 9 | 1.2 | 2.49×7 | 2 | 35 |
| 0.3870 | 485.650 | 12.8 | 10.6 | 1.4 | 1.76×19 | 2 | 50 |
| 0.2680 | 680.310 | 14.6 | 12.1 | 1.4 | 2.11×19 | 2 | 70 |
| 0.1930 | 935.000 | 17.1 | 14.1 | 1.6 | 2.49×19 | 2 | 95 |
| 0.1530 | 1165.350 | 18.8 | 15.6 | 1.6 | 2.03×37 | 2 | 120 |
| 0.1240 | 1439.500 | 20.9 | 17.3 | 1.8 | 2.22×37 | 2 | 150 |
| 0.0991 | 1794.580 | 23.3 | 19.3 | 2 | 2.49×37 | 2 | 185 |
| 0.0754 | 2345.670 | 26.6 | 22 | 2.2 | 2.22×61 | 2 | 240 |
| 0.0601 | 2937.430 | 29.6 | 24.5 | 2.4 | 2.49×61 | 2 | 300 |
| 0.0470 | 3730.590 | 33.2 | 27.5 | 2.6 | 2.81×61 | 2 | 400 |
